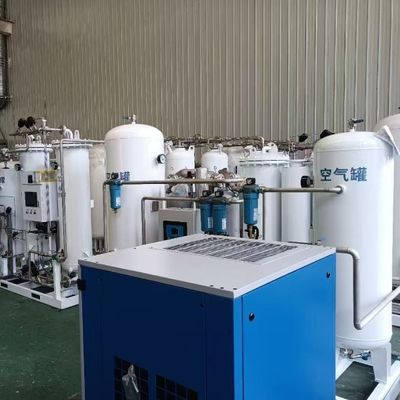

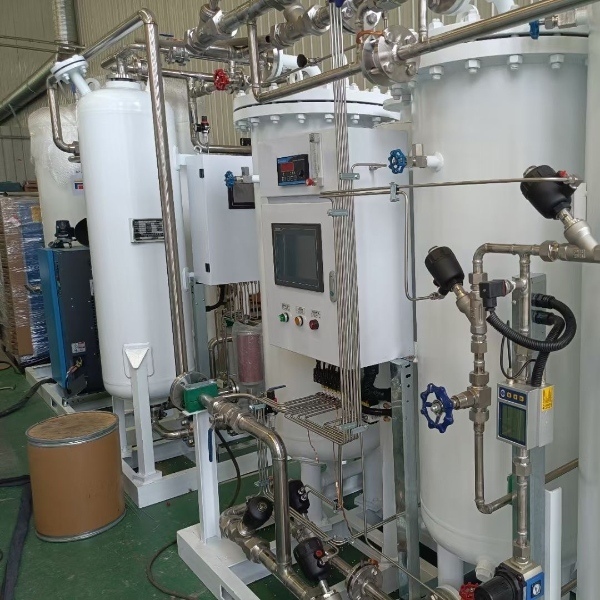

Long service life Pressure Swing Adsorption Oxygen Plant with oxygen monitor
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | KERONG GAS |
| Πιστοποίηση: | ISO13485，ISO9001 |
| Αριθμό μοντέλου: | ΚΡΟ |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 PC |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | ΞΥΛΙΝΟ ΚΟΥΤΙ |
| Χρόνος παράδοσης: | 8 εβδομάδες |
| Όροι πληρωμής: | L/C, T/T, Western Union, MoneyGram |
| Δυνατότητα προσφοράς: | 1000pcs ετησίως |
|
Λεπτομερής ενημέρωση |
|||
| Ονομα: | Εγκαταστάσεις οξυγόνου προσρόφησης ταλάντευσης πίεσης | Καθαρότητα: | 90% έως 99,5% |
|---|---|---|---|
| Περιεκτικότητα σε λάδι: | Χωρίς λάδι | υλικό: | Ανοξείδωτο ή Ανθρακούχο Χάλυβα |
| Ικανότητα: | 5Nm3/hr~60Nm3/hr | Πίεση: | Ευκανόνιστος |
| Επισημαίνω: | PSA medical oxygen generator with monitor,long life PSA oxygen plant,pressure swing adsorption oxygen system |
||
Περιγραφή προϊόντων
Long service life Pressure Swing Adsorption Oxygen Plant with oxygen monitor
Product description
Our Long Service Life Pressure Swing Adsorption (PSA) Oxygen Plant with Oxygen Monitor is engineered to provide a stable and continuous on-site oxygen supply for medical and industrial applications. Utilizing advanced PSA technology, the system efficiently separates oxygen from compressed air, delivering oxygen purity up to 93–95% with consistent flow and pressure. The integrated oxygen monitor ensures real-time purity tracking and automatic system adjustment for reliable performance and safety. Designed with high-quality molecular sieves and durable components, the plant offers extended service life and low maintenance requirements. Fully automatic, energy-efficient, and skid-mounted for easy installation, this oxygen plant provides a cost-effective alternative to cylinders or liquid oxygen supply.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
