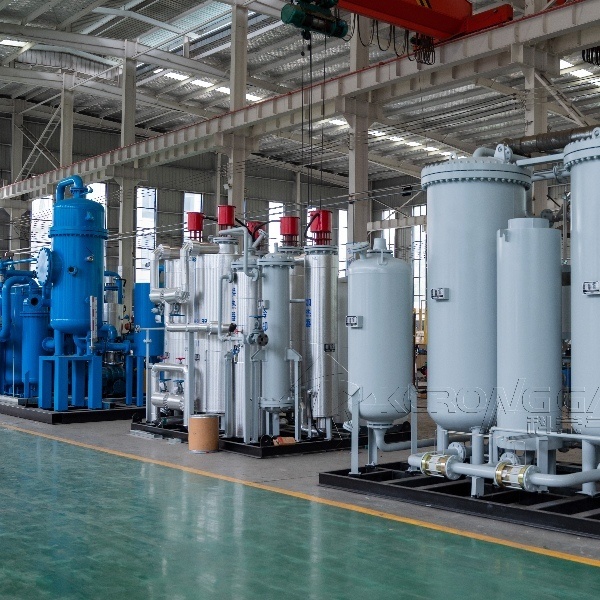

Skid-Mounted Automatic Nitrogen Air Separation Unit With CE Certified
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | KERONG GAS |
| Πιστοποίηση: | ISO9001, CE, ASME |
| Αριθμό μοντέλου: | Κτηνοτροφείο |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 υπολογιστή |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Ξύλιμο κουτί |
| Χρόνος παράδοσης: | 8 εβδομάδες |
| Όροι πληρωμής: | L/C, T/T, Western Union, MoneyGram |
| Δυνατότητα προσφοράς: | 1000pcs ετησίως |
|
Λεπτομερής ενημέρωση |
|||
| Ονομα: | Μονάδα διαχωρισμού αέρα από άζωτο | Καθαρότητα: | 90%~ 99,9999% |
|---|---|---|---|
| Δροσιάς: | -45 ℃ ή περισσότερο | Υλικό: | Ανοξείδωτος χάλυβας ή ανθρακούχου χάλυβα |
| Ικανότητα: | 5nm3/hr ~ 5500nm3/hr | Πίεση: | Ευκανόνιστος |
| Επισημαίνω: | Skid-mounted PSA nitrogen generator,Automatic nitrogen air separation unit,CE certified nitrogen gas generator |
||
Περιγραφή προϊόντων
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our Skid-Mounted Automatic Nitrogen Air Separation Unit delivers high-purity nitrogen (up to 99.99%) efficiently and reliably for industrial, medical, and laboratory applications. Housed on a robust skid-mounted frame, the system integrates all essential components—including compressor, dryer, filtration, and control modules—into a pre-assembled, ready-to-operate unit, simplifying transport and installation. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it produces a continuous on-site nitrogen supply with stable purity and pressure. Fully automatic and CE-certified, it ensures safe, compliant operation, energy efficiency, and minimal maintenance, providing a cost-effective, dependable solution for high-demand nitrogen applications.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
